The New CDE Long-Life, Low-ESR Capacitor Series for Motor Drive, Inverter, UPS and other Power Applications
February 12, 2020 - New Yorker Electronics, a long-time franchise distributor for Cornell Dubilier Electronics (CDE), has just released the manufacturer’s new 381LL series of long-life snap-in aluminum electrolytic capacitors. The series, designated with an expected life of 8,000 hours at full-rated conditions, demonstrates superb stability in capacitance and DC leakage current over time on test.

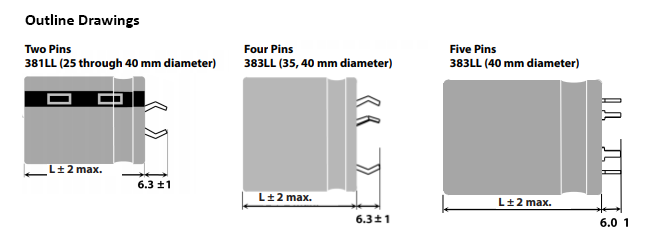

Capacitance values range from 740µF to 100,000µF at working voltages of 16 to 250WVDC with ripple current ratings up to 10 amps @ 105°C. The snap-in capacitor series is available in a two-, four- and five-pin version. The two-pin 381LL ranges in diameter from 25 to 40mm diameter. The four-pin 383LL is available in either 35 or 40mm diameter options and the five-pin 383LL has a 40mm diameter. They use CDE’s most advanced electrolyte system to deliver reliable performance and stability over the life of the capacitor.
The two-pin 381LL ranges in diameter from 25 to 40mm diameter. The four-pin 383LL is available in either 35 or 40mm diameter options and the five-pin 383LL has a 40mm diameter. They use CDE’s most advanced electrolyte system to deliver reliable performance and stability over the life of the capacitor.
General applications include any circuit requiring high capacitance with low ESR, high ripple current and long life, such as switch-mode power supplies (SMPS), UPS systems, solar and other high-power inverters.
As a franchise distributor for CDE, New Yorker Electronics supplies the full line of Cornell Dubilier Electronics' Aluminum Electrolytic Capacitors as well as AC Oil Filled Capacitors, DC Oil Filled Capacitors, Film Capacitors, MICA Capacitors, Ultracapacitors, Surface Mount Capacitors, Aluminum Polymer Capacitors and Supercapacitors.
Features & Benefits:
Applications:
Data Sheets:
